Description

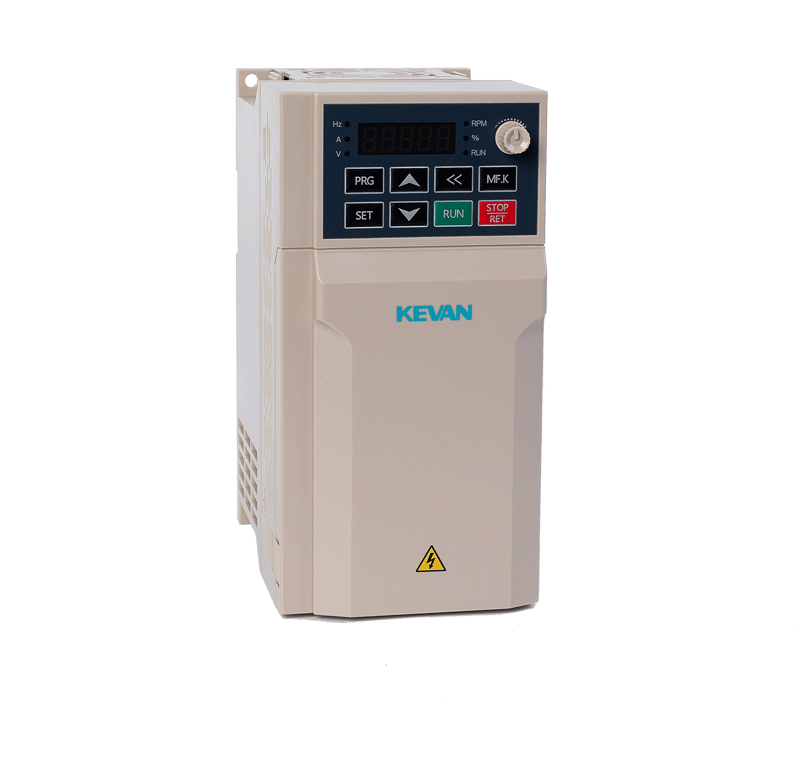

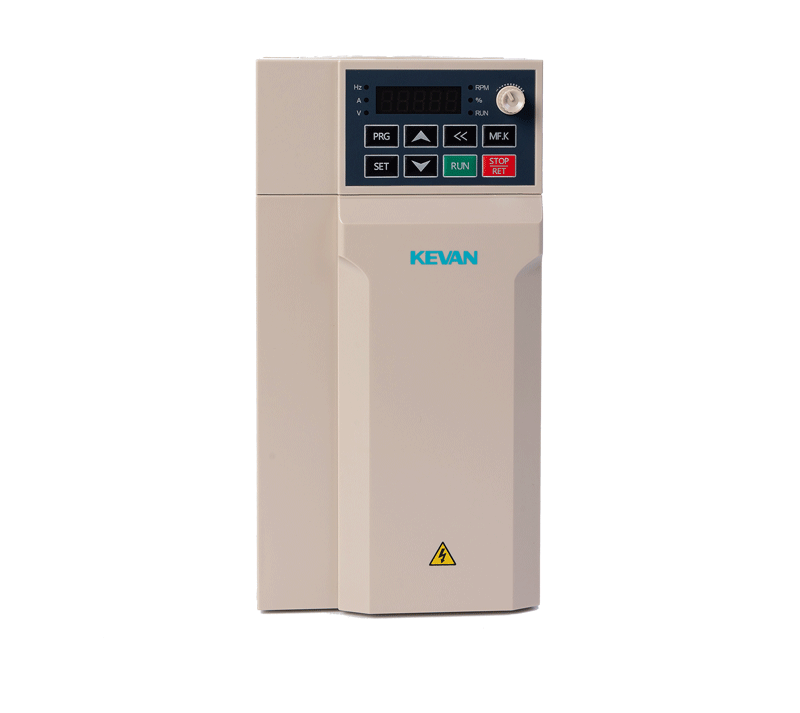

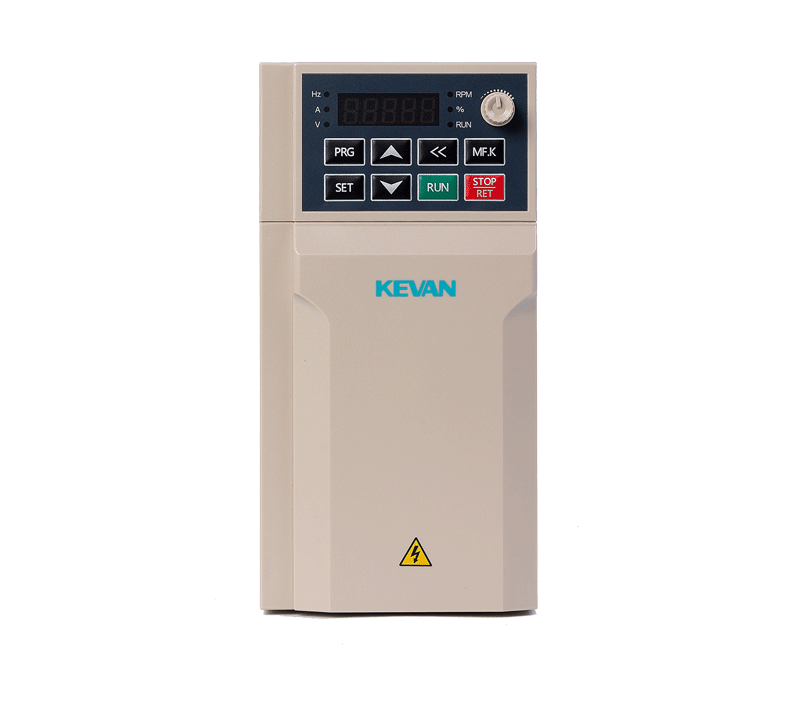

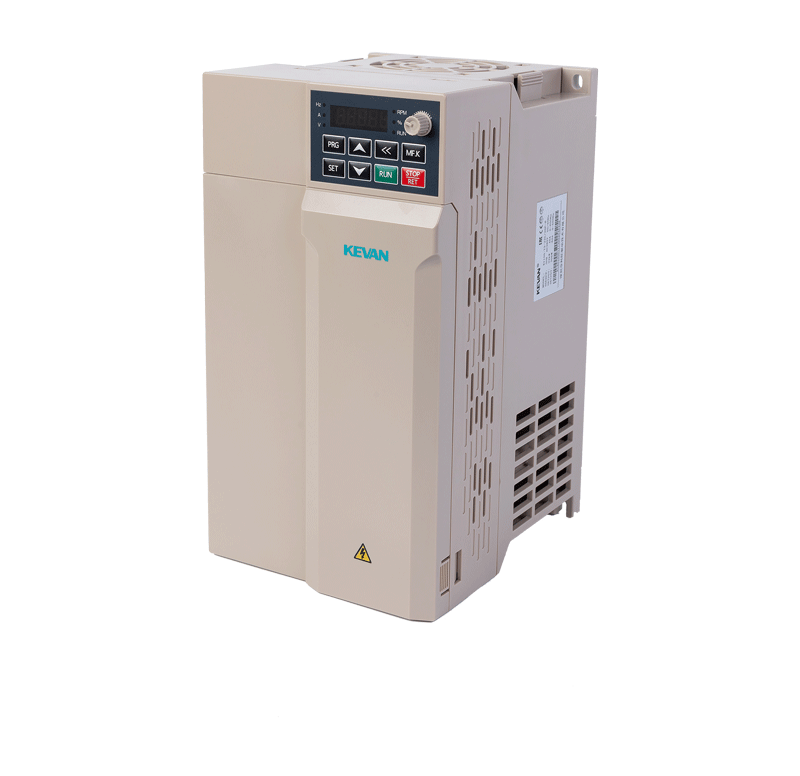

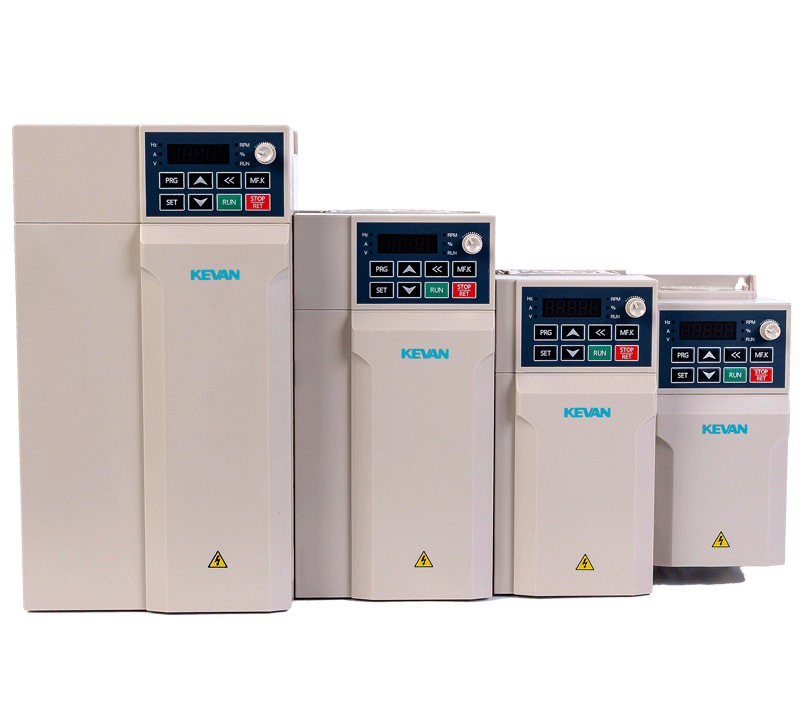

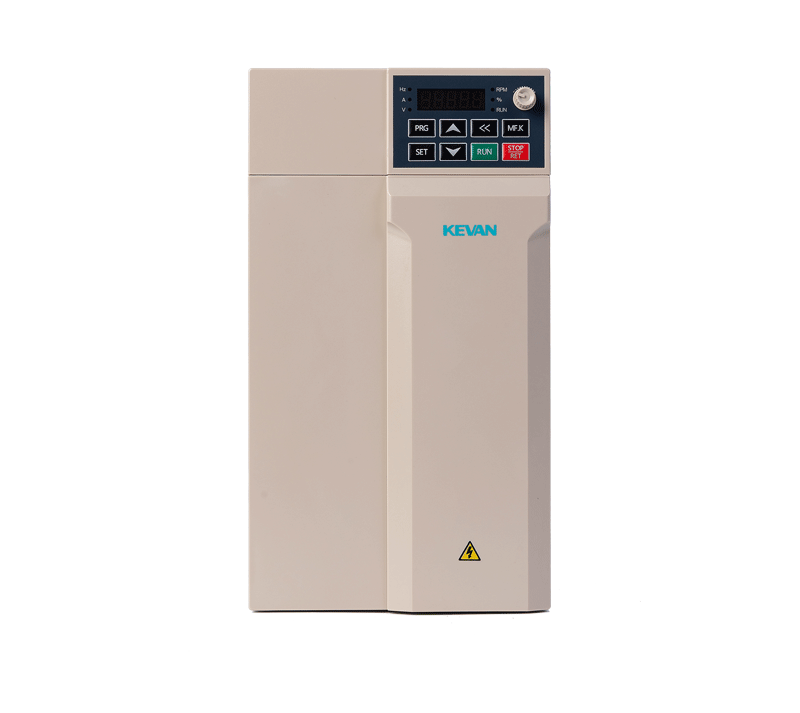

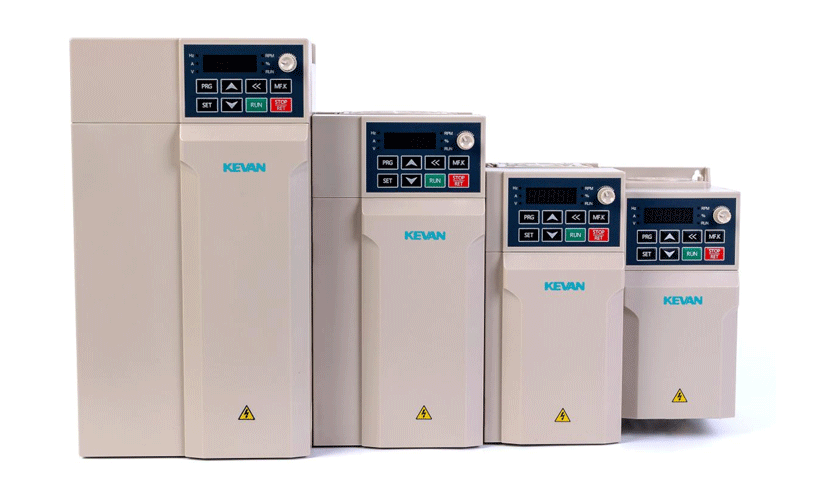

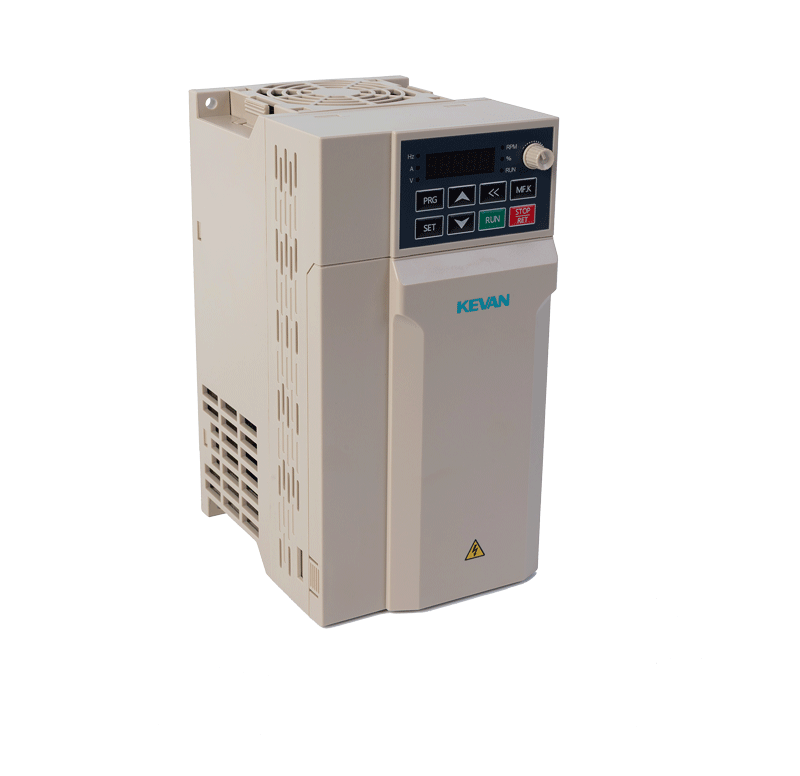

SV13 Series Solar Pump Inverter
Shenzhen KEVAN Drive Technology Co., Ltd. introduces the SV13 Series Solar Pump Inverter, a next-generation solar pump drive designed to meet market demands for miniaturization, high reliability, and cost-effectiveness. As a book-style narrow-body inverter, the SV13 series solar pump inverter prioritizes every detail throughout its development process — including hardware, software, structure, testing, and manufacturing techniques — ensuring scientific rigor, precision, and practicality.
The SV13 series inverter offers easy installation, compact size, low temperature rise, high protection rating, and robust software performance, making it an ideal choice for solar-powered water pumping systems worldwide.
Main Features
- Wide Compatibility
The SV13 solar pump inverter supports single-phase 220V, three-phase 220V, and three-phase 380V water pumps with power ratings ranging from 0.4kW to 22kW. This wide compatibility makes it suitable for various pump types and regional power standards.
- MPPT & Protection
Equipped with Maximum Power Point Tracking (MPPT) technology, the SV13 inverter ensures optimal power output from solar panels under varying sunlight conditions. Multiple protection functions safeguard the inverter and pump against overvoltage, overcurrent, dry-run, and other fault conditions.
- Motor Versatility
The SV13 series solar pump inverter drives various motor types, including PMSM (permanent magnet synchronous motor), asynchronous motor, and BLDC motor. This flexibility allows customers to use the same inverter with different pump technologies.
- Remote Control
Supports a GPRS module for mobile APP remote control. Users can monitor and control their water pumping system from anywhere — start, stop, check status, and view historical data via smartphone.
- Hybrid Power
The SV13 solar pump inverter operates in AC/DC hybrid mode, seamlessly switching between solar (DC) and grid/diesel (AC) power sources. This ensures 24/7 water supply even during cloudy days or nighttime.
- Flexible Installation
Offers various installation methods to accommodate different site requirements — whether on wall, control cabinet, or standalone mounting.
- Effective Cooling
Utilizes an independent air duct design for enhanced heat dissipation, minimizing dust impact on internal components and ensuring long-term reliability in harsh environments.
- Robust Safety
Incorporates multiple protection mechanisms, including overvoltage, undervoltage, overcurrent, short circuit, dry-run, and overload protection — ensuring safe operation under all conditions.
Technical Specifications
- Power Range: 0.4kW – 22kW
- Voltage Options: Single-phase 220V, three-phase 220V, three-phase 380V
- Motor Types: PMSM, asynchronous motor, BLDC motor
- MPPT: Built-in Maximum Power Point Tracking
- Power Source: AC/DC hybrid (solar + grid/diesel backup)
- Remote Monitoring: GPRS module for mobile APP control
- Cooling: Independent air duct design
- Protection: Overvoltage, overcurrent, dry-run, short circuit, overload
- Form Factor: Book-style narrow-body design

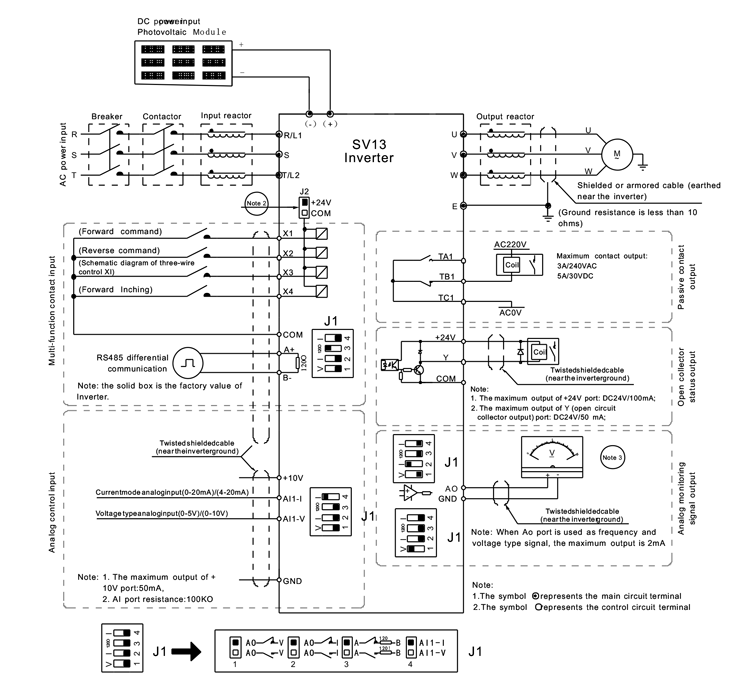

Terminal Wiring Diagram
Applications of SV13 Series Solar Pump Inverter

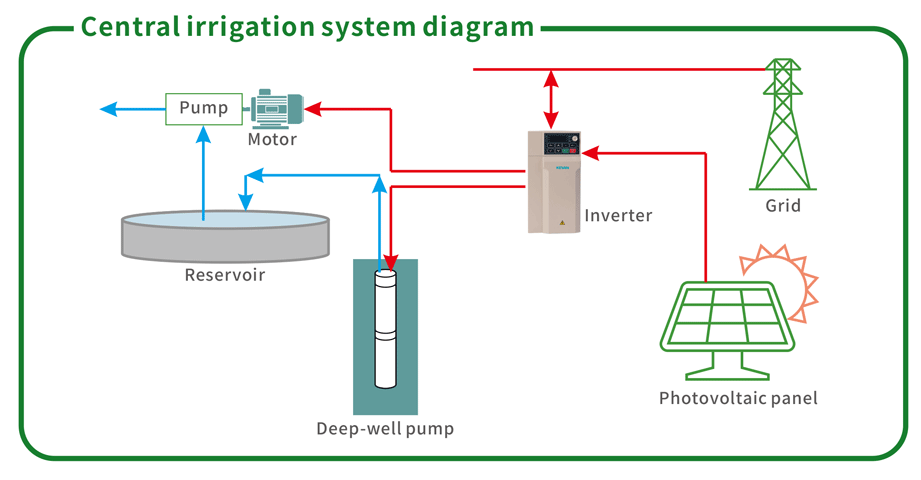

The SV13 solar pump inverter is ideal for a wide range of solar-powered water pumping applications, including:
- Agricultural Irrigation – Solar-powered water supply for crop irrigation in remote farmlands
- Livestock Watering – Reliable water pumping for cattle, sheep, and other livestock in off-grid pastures
- Residential Water Supply – Solar pumping for household water tanks and gardens
- Fountain and Pond Circulation – Decorative and ecological water features
- Remote Village Water Systems – Community drinking water supply in areas without grid access
- Drought Relief – Emergency water pumping in drought-affected regions
- Aquaculture – Water circulation and aeration for fish farms
Why Choose SV13 Series Solar Pump Inverter?
- Compact book-style design – Saves space in control cabinets, easy to install
- High reliability – Rigorous testing across hardware, software, and structure
- Cost-effective – Affordable solution without compromising quality
- Low temperature rise – Efficient cooling extends component lifespan
- High protection rating – Suitable for outdoor and harsh environments
- User-friendly – Mobile APP remote control for easy operation
- Energy saving – Maximizes solar energy utilization with MPPT technology
