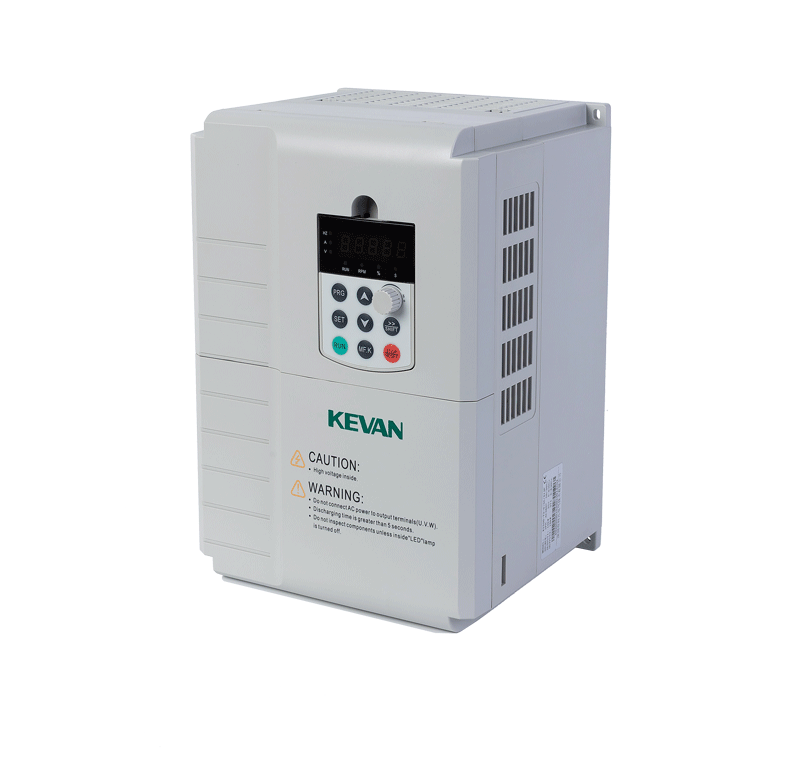

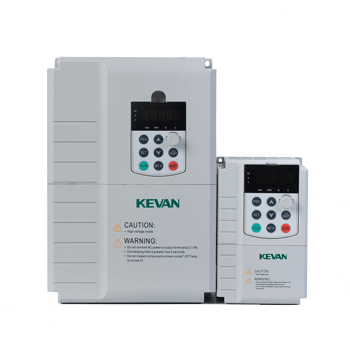

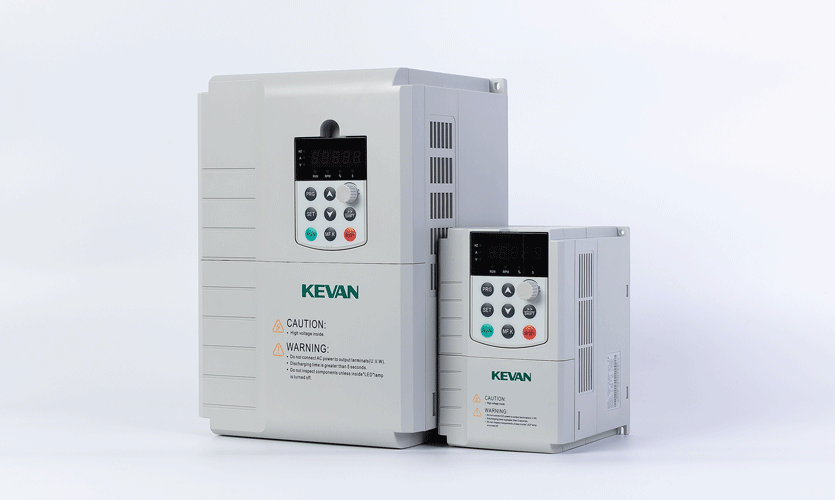

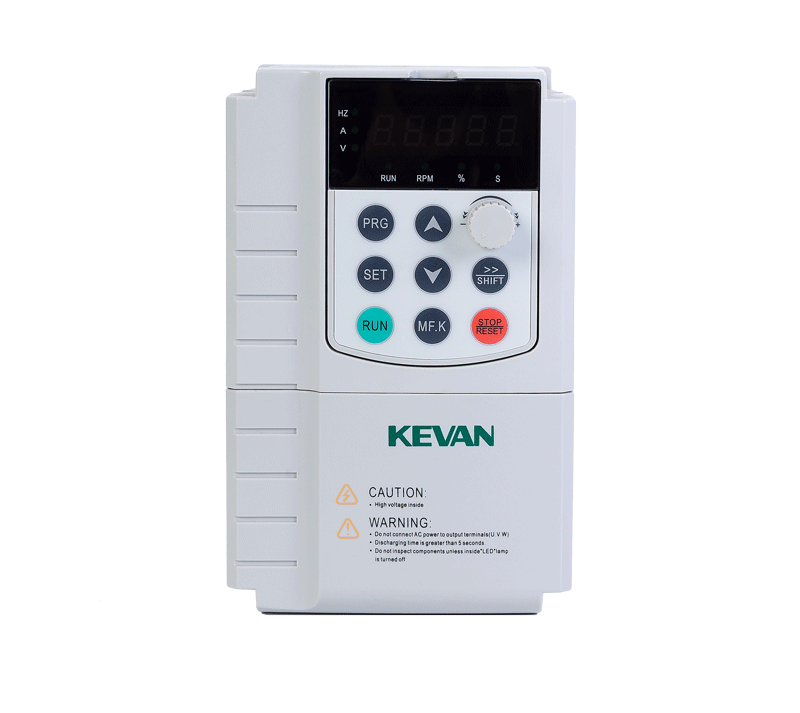

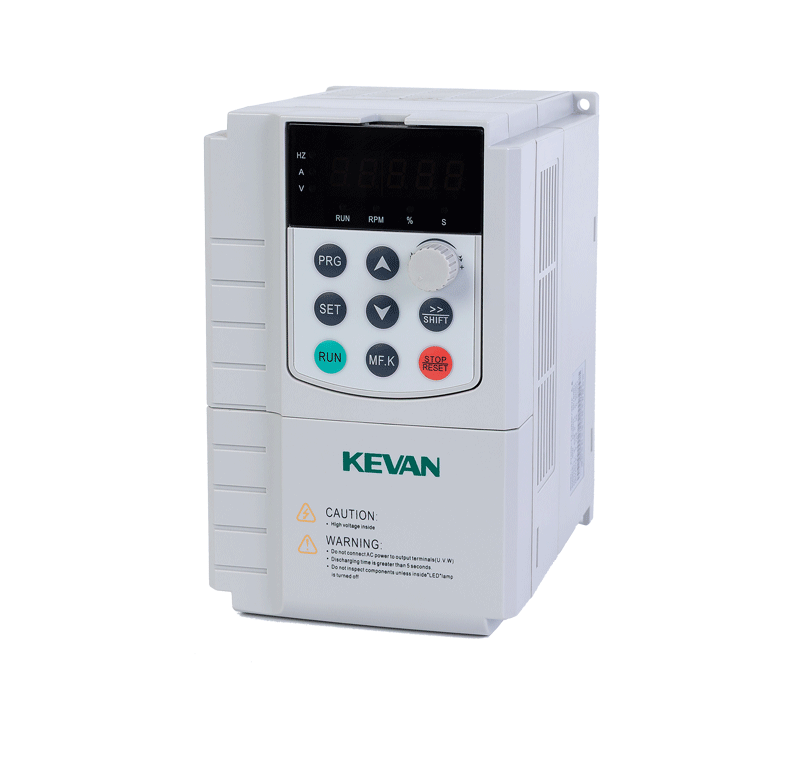

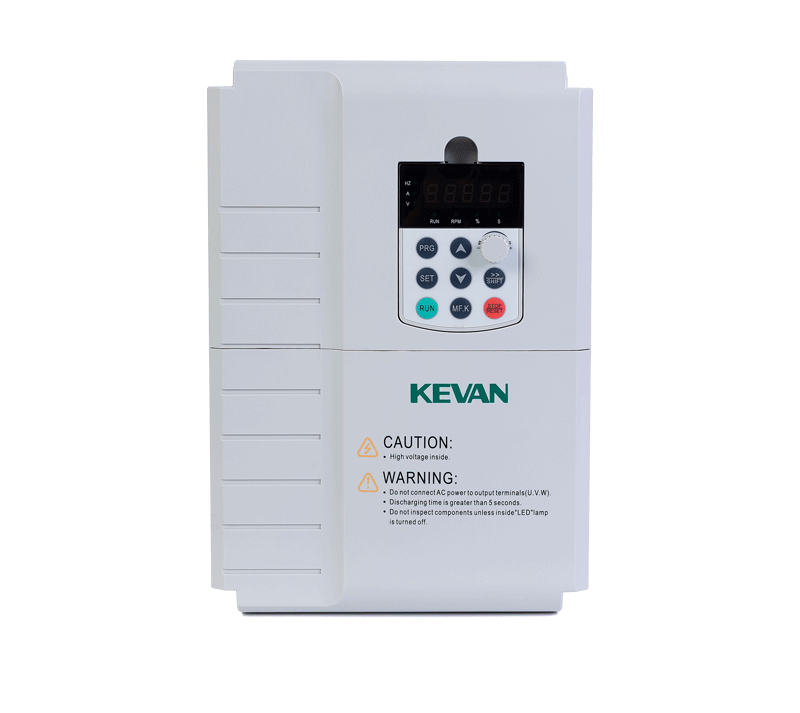

KV500 Series Solar Pump Inverter | 220V Input 380V Output
Shenzhen KEVAN Drive Technology Co., Ltd. proudly presents the KV500 Series Solar Pump Inverter — a purpose-built solution for challenging environments like photovoltaic water pumping and off-grid industrial sites. Its standout capability lies in accepting single-phase 220V input and delivering three-phase 380V output, directly solving the long-standing challenge of operating three-phase equipment where only single-phase power is available.
With a flexible power range of 2.2kW to 18kW, the KV500 series combines solar-optimized MPPT algorithms, precision vector control, and multi-layer protection features into a compact, reliable package. Whether for agricultural irrigation, livestock watering, or small-scale industrial machinery, the KV500 delivers consistent performance, energy savings, and peace of mind in even the most remote locations.
Key Features
- Single-phase 220V Input / Three-phase 380V Output – Directly drives standard industrial three-phase motors without a step-up transformer
- Dual Power Supply Modes – Supports both AC grid input (single-phase) and DC photovoltaic input (PV+/PV-)
- Built-in MPPT Algorithm – Maximizes solar panel energy harvesting
- Motor Type Compatibility – Drives both asynchronous induction motors (IM) and permanent magnet synchronous motors (PMSM)
- IP20 Protection + Independent Air Duct – Enhanced heat dissipation and dust resistance
- Intelligent Protections – Dry-run protection, over-current protection, over-voltage suppression, low-frequency protection, and tank full detection
- Remote Monitoring Ready – RS485 communication supporting Modbus protocol
- Flexible Installation – Book-style narrow body design for easy cabinet mounting
Technical Specifications
| Power Range | 2.2kW ~ 18kW |
| Input Voltage / Phase | Single-phase 220VAC (±15%), 50/60Hz |
| Output Voltage / Phase | Three-phase 380VAC (0 ~ input voltage) |
| Output Frequency | 0 ~ 600Hz (G type: 0 ~ 600Hz) |
| Control Mode | V/F control, open-loop vector control (VC without PG) |
| Starting Torque | 150% rated torque at 0.5Hz (VC without PG) |
| Overload Capacity | 150% for 1 min, 180% for 10s, 200% for 0.5s |
| PV Input (DC) | DC photovoltaic input available (F14 group parameters) |
| Communication | RS485 (Modbus RTU) |
| Protection Level | IP20 |

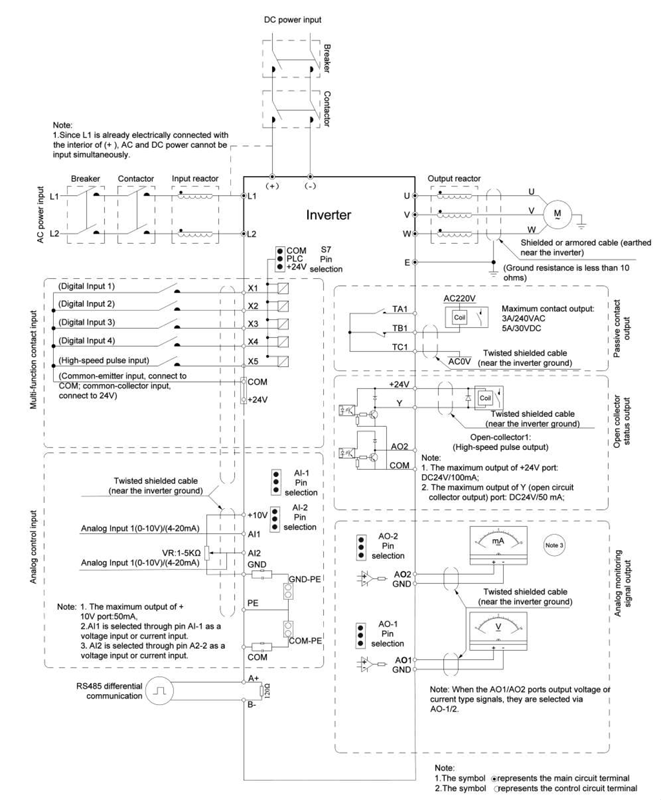

Wiring method for control circuit

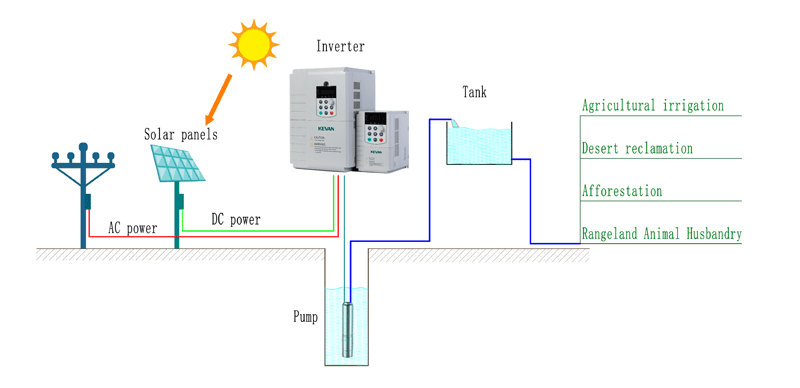

Irrigation System Diagram
Applications
The KV500 series solar pump inverter is ideally suited for the following use cases:
- Solar Pumping Systems – Agricultural irrigation, livestock watering, desert control
- Remote Water Supply – Drinking water and domestic water systems in off-grid areas
- Industrial Equipment – Small machine tools, textile machinery, fans and pumps
- Retrofit Projects – Upgrading sites with only single-phase power supply
Why Choose KV500?
- Cost-saving design – Eliminates the need for a step-up transformer or phase converter; directly converts 220V single-phase into 380V three-phase
- Solar-ready – Built-in MPPT algorithm and photovoltaic water pump special parameters
- Easy commissioning – User-friendly keypad with LED display; supports parameter upload/copy via keypad
- Reliability – Multiple protection features (dry-run, over-current, low frequency) ensure long-term unattended operation
- Global compatibility – Supports both 50Hz and 60Hz power grids
